Aratas

D2HW-C201H

D2HW-C201H

49 kr
49 kr
Sale Sold out
Taxes included. Shipping calculated at checkout.
Pack size

10 in stock

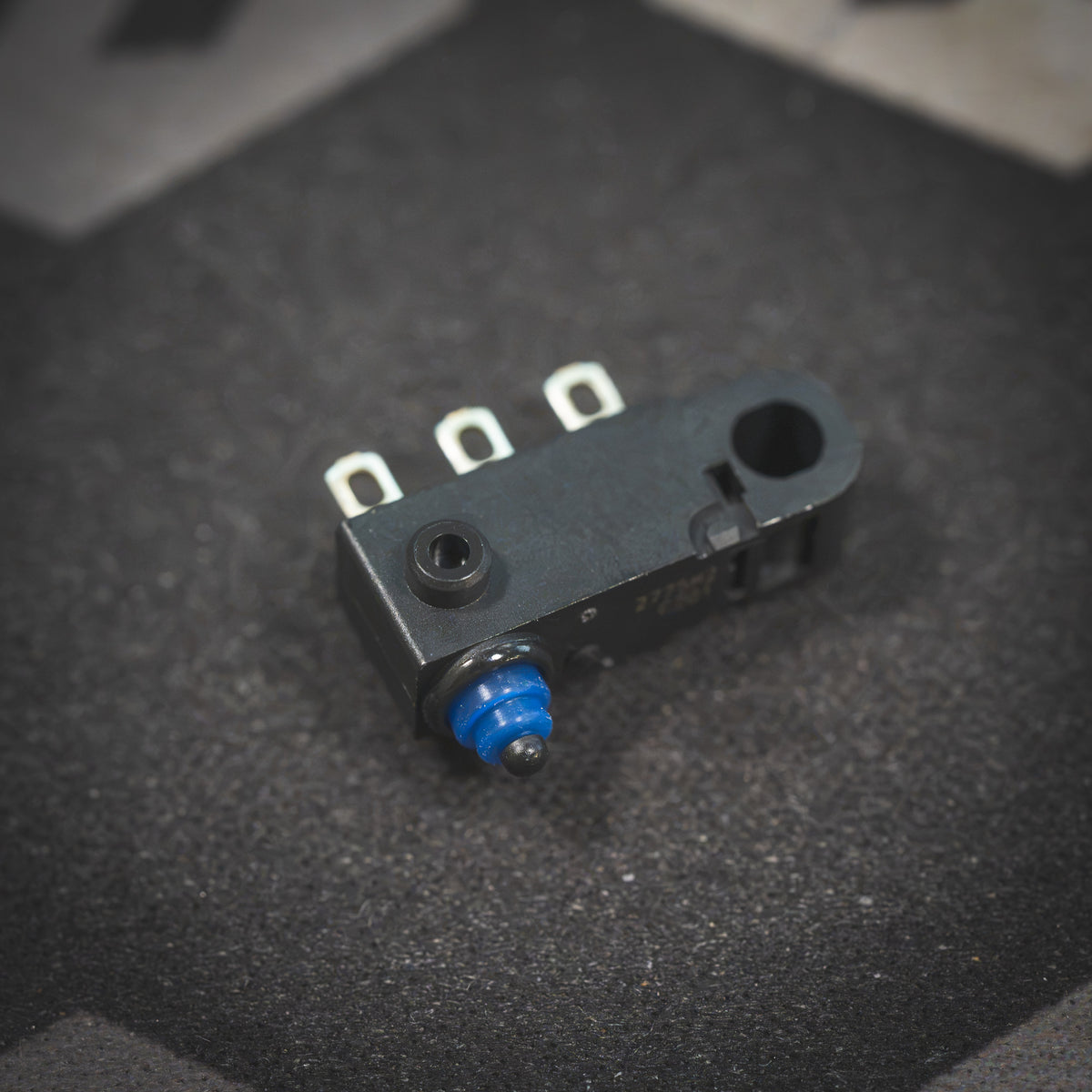

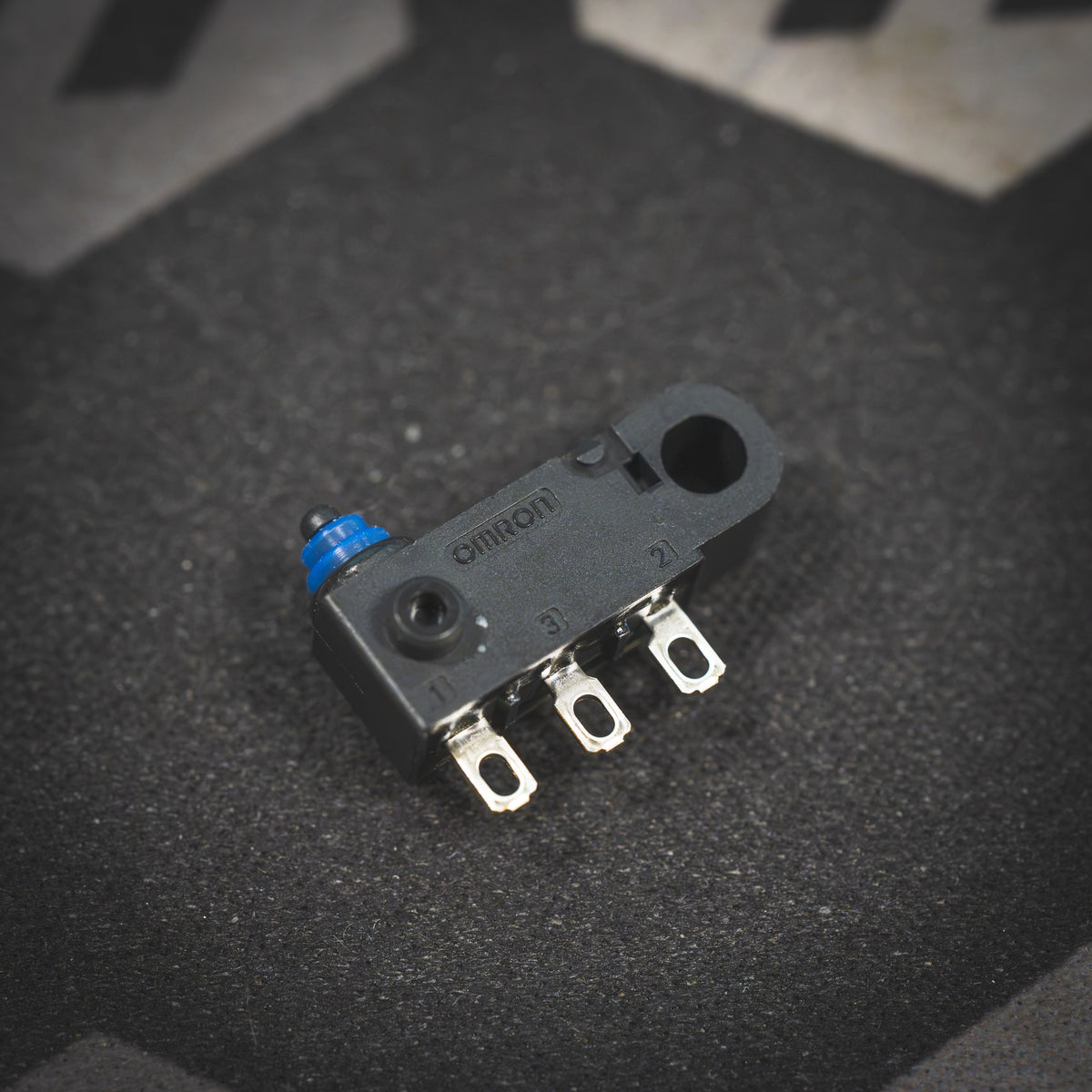

Aratas D2HW-C Snap Action Microswitch

Compact snap action microswitch from Aratas (formerly Omron Components), featuring an IP67-rated housing, gold-plated contacts and a durable design suitable for precision switching applications.

This version features a leverless actuator, SPDT contact configuration and solder terminals. Its compact dimensions and M3 screw mounting make it suitable for applications where space is limited.

Specifications

Manufacturer Aratas (formerly Omron Components)
Manufacturer series D2HW-C
Switch type Snap action microswitch
Actuator Without lever
Contact configuration SPDT
Switching method ON-(ON)
Number of positions 2
Stable positions 1
AC contact rating 0.1 A / 125 V AC
DC contact rating 2 A / 12 V DC
Max. contact resistance 100 mΩ
Operating force 0.75 N
IP rating IP67
Operating temperature -40°C to +85°C
Mechanical durability 1,000,000 cycles
Electrical life 100,000 cycles
Contact plating Gold-plated
Terminals Solder terminals
Terminal pitch 4.38 mm
Body dimensions 18.5 × 5.3 × 6.5 mm
Mounting M3 screw

Key Features

• Genuine Aratas (formerly Omron Components) microswitch
• IP67-rated housing for protection against dust and water ingress
• Gold-plated SPDT contacts
• Compact leverless design
• Low operating force of 0.75 N
• Rated for up to 1 million mechanical operations
• Wide operating temperature range of -40°C to +85°C
• Solder terminals and M3 screw mounting
