LDO Motors

LDO-42STH48-2504AHS8 S55

LDO-42STH48-2504AHS8 S55

379 kr
379 kr
Sale Sold out
Taxes included. Shipping calculated at checkout.

16 in stock

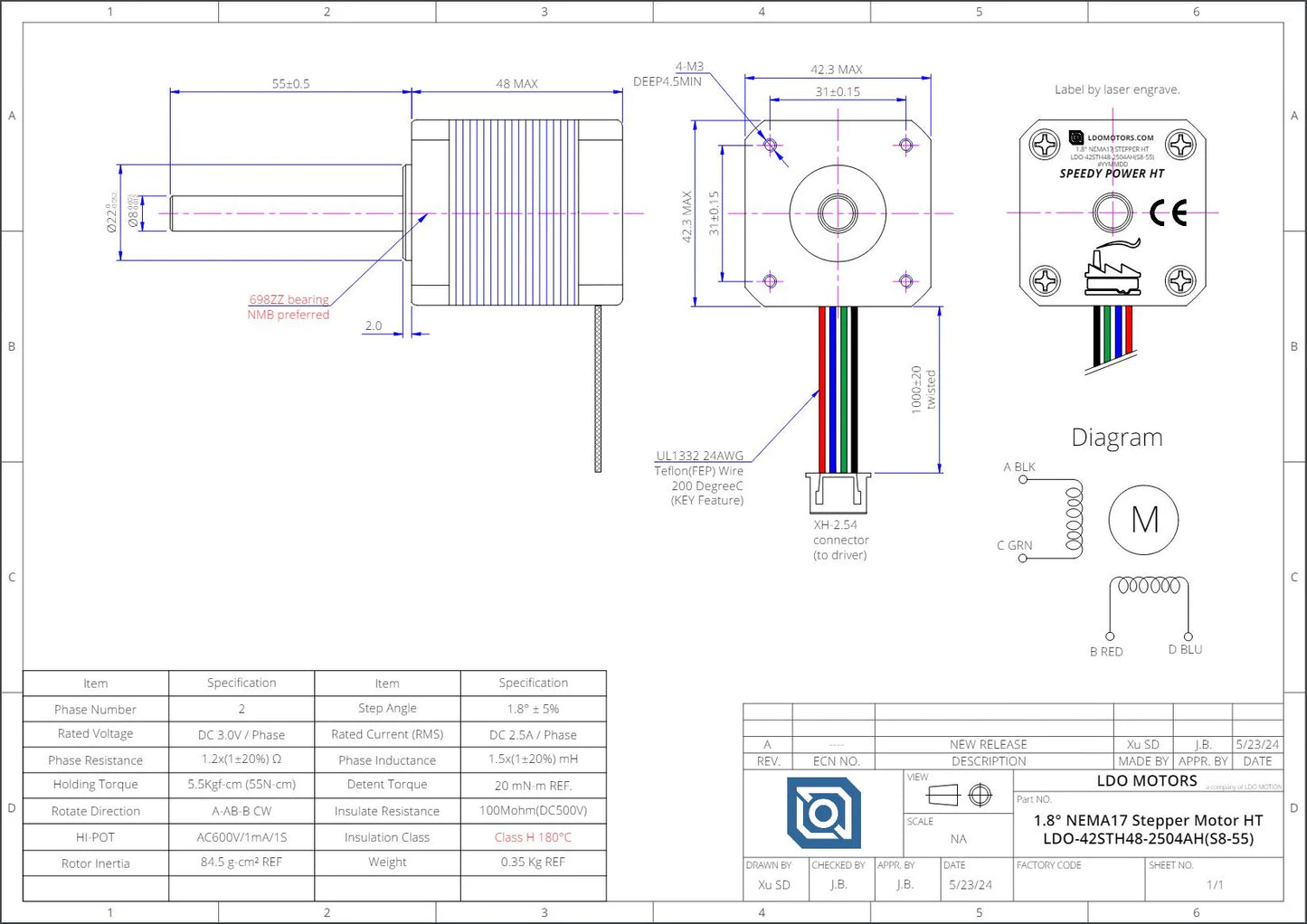

Motor from LDO with 55mm long, round 8mm shaft.

Phase Number 2
Step Angle 1.8
Rated Voltage DC 3.0V / Phase
Rated Current (RMS) DC 2.5A / Phase
Phase Resistance 1.2x(1 ±20%) Ω
Phase Inductance 1.5x(1 ±20%) mH
Holding Torque 5.5Kgf-cm (55N-cm)
Detent Torque 20 nM-m REF.
Rotate Direction A-AB-B CW
Insulation Resistance 100Mohm(DC500V)
HI-POT AC600V/1mA/1S
Insulation Class Class H 180°C
Rotor Inertia 84.5 g-cm² REF
Weight 0.35 Kg REF
Shaft Length 55mm
Shaft Outer Diameter 8 mm
Shaft Type Round
