Hardware kit configuration
Monolith Printed Gantry R1
Currently based on BOM version 1.0.5
Base hardware kits
Contains the bare basic standard hardware like screws, nuts, washers, heatsets and t-nuts. It is divided up in to two parts, one common and one belt size specific. All screws are black untreated for now. If you want any other surface treatment let me know and I see what I can do.
Base hardware kits are divided up in two parts. A common part and a belt size specific part. If you include the base hardware you will get the common part and the belt specific part depending on what belt size you choose.
Common hardware kit
| Item | Quantity |
|---|---|
| M3 hex nut | 5 |
| M3 washer | 25 |
| M3x10 SHCS | 4 |
| M3x16 SHCS | 4 |
| M3x30 BHCS | 22 |
| M3x35 BHCS | 18 |
| M3x6 BHCS | 14 |
| M3xD5x4 threaded insert, black nickel plated | 20 |
| M5x40 SHCS | 10 |
| M5 2020 drop-in T-nut | 40 |
| M3 2020 drop-in T-nut | 10 |
6mm specific hardware kit
| Item | Quantity |
|---|---|
| M3x25 SHCS | 4 |
| M3x35 SHCS | 16 |
| M3x45 SHCS | 4 |
| M5 washer | 10 |
| M5x10 BHCS | 32 |
| M5x16 BHCS | 18 |
9mm specific hardware kit
| Item | Quantity |
|---|---|
| M3x35 SHCS | 4 |
| M3x40 SHCS | 8 |
| M3x45 SHCS | 16 |
| M3x8 SHCS | 6 |
| M5 washer | 6 |
| M5x10 BHCS | 6 |
| M5x12 BHCS | 8 |
| M5x16 BHCS | 34 |
| M5x20 BHCS | 10 |
Motion hardware kit
Motion kits contains the pins, shims and pulleys needed for the gantry. 6mm version comes with regular pulleys that you can use to make your own live shaft idlers. 9mm kit comes with custom pre-made live shaft pulleys. No pulleys for motors are included but they can be bought separately if needed.
6mm motion kit
| Item | Quantity |
|---|---|
| Shim 0.5mm | 25 |
| Shim 1.0mm | 6 |
| D5x20mm smooth pin | 2 |
| D5x30mm smooth pin | 10 |
| GT2 20T 6mm pulley 5mm ID | 8 |
| M4x2.5mm set screw | 10 |
9mm motion kit
| Item | Quantity |
|---|---|
| Shim 0.5mm | 25 |
| D5x25mm smooth pin | 2 |
| D5x40mm smooth pin | 10 |
| GT2 20T 9mm pulley custom live shaft idler | 4 |
| M4x2.5mm set screw | 10 |

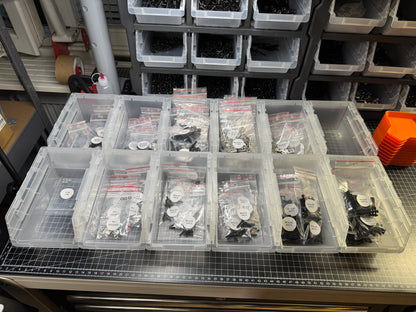

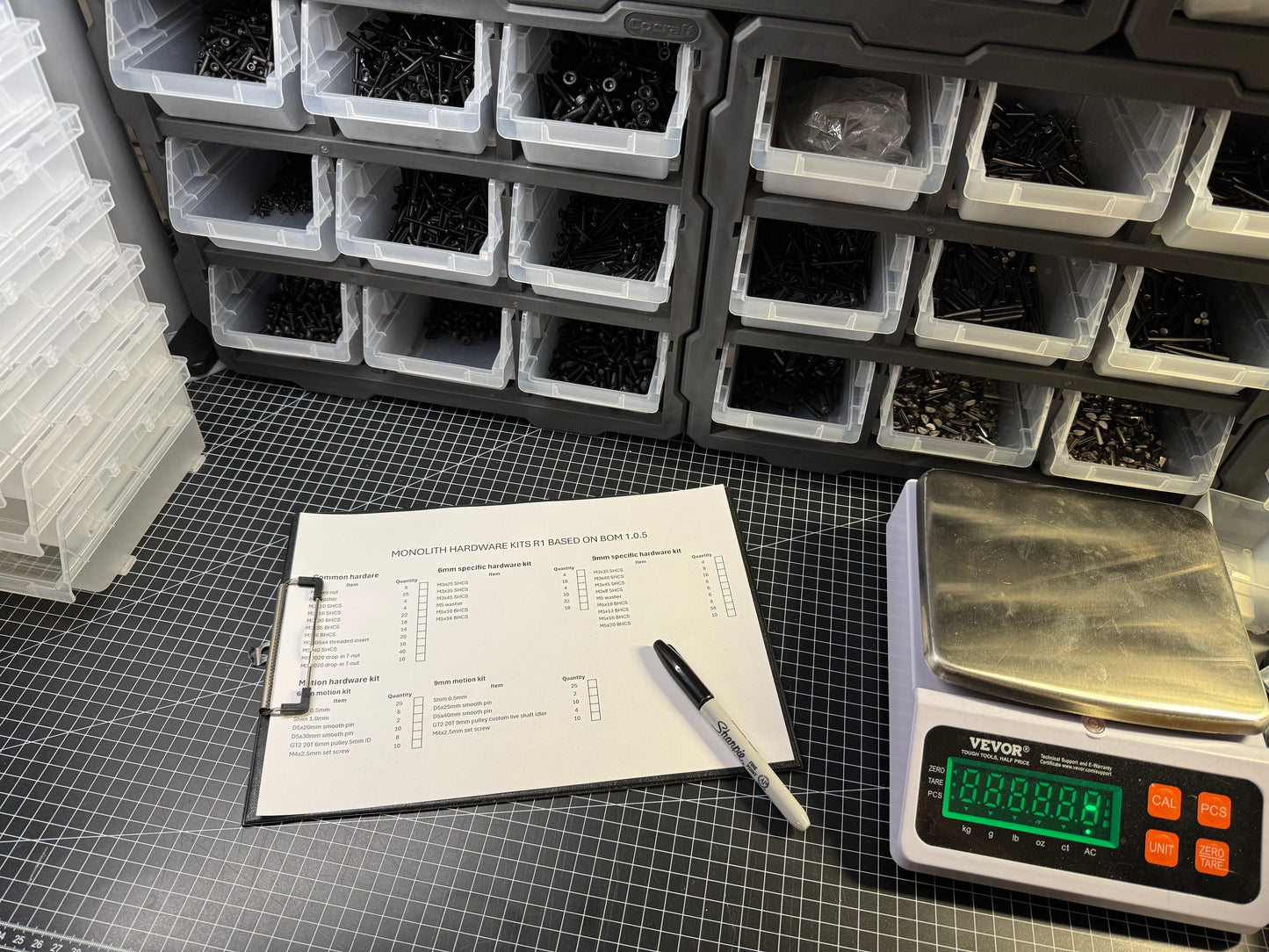

All hardware kits are counted and bagged by myself. I am only human but I do have a counting scale to my assistance. All bags are weighed to verify that they all weigh the same. But if there for some reason should be any hardware missing, reach out to me and I will send you the missing parts.
